Description
Specifications

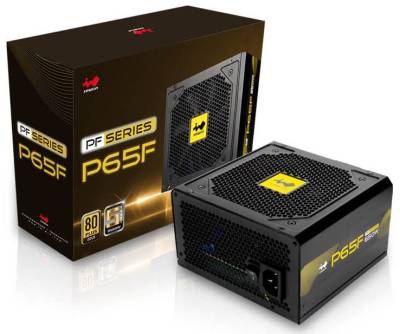

| Model | P55F | P65F | P75F | ||
|---|---|---|---|---|---|
| Model Number | IW-PS-PF550W | IW-PS-PF650W | IW-PS-PF750W | ||
| Total Power | 550W | 650W | 750W | ||
| Materials | SECC | ||||
| Type | ATX12V V2.52 | ||||
| Cable Management | Non-Modular Cables | ||||
| PFC | Active PFC (> 0.95) | ||||
| Efficiency | 80 PLUS® Gold (Up to 90%) | ||||
| MTBF (Hours) | > 100,000 hrs. | ||||
| AC Input | 100-240Vac, 8-10A, 50-60Hz | ||||
| Fan | 120mm Sleeve Bearing Fan | ||||
| Typical Load Fan Noise(dBA) (50% Loading) |
< 25dBA | ||||
| Operating Temperature Range (°C) | 0~40 °C | ||||
| Full Protection | OCP / OVP / UVP / SCP / OTP / OPP | ||||
| Safety Certifications | cTUVus / TUV / CB / CE / CCC / FCC / RCM / BSMI | ||||
| Product Dimensions (L x W x H) |
140 x 150 x 86 mm | ||||
| Package Dimensions (L x W x H) |
280 x 210 x 105 mm | ||||
| Net Weight | 1.5 kg | 1.54 kg | 1.65 kg | ||
| Gross Weight | 1.95 kg | 2.0 kg | 2.1 kg | ||
| Warranty | 5 Years | ||||
| Connectors | 20+4 Pin Motherboard | 1 | 1 | 1 | |
| 8-Pin CPU | 1 | 1 | 1 | ||
| 4-Pin CPU | 1 | 1 | 1 | ||
| 8 (6+2) Pin PCI-E | 2 | 2 | 4 | ||
| SATA (90 Degree) | 6 | 6 | 6 | ||
| 4-Pin Peripheral | 3 | 3 | 3 | ||
| * InWin products comply with RoHS regulations. * Specifications may vary based on different regions. |
|||||
