Gigabyte Gp-P750gm / Gp-Ud750gm 750w 80plus Gold Modular – 10x Full Modular Cable Management ( All Detachable + Flat Cable System ) Eps12v- 24pin ( 4pin Detachable ) 2x Eps12v 4x 8pin (2+6) Pci-E Power 8x Sata + 1x 4pin Molex Mesh Braided Cable Desi

R2650.70

Prices and Stock are updated on a monthly basis, if a product is out of stock… contact us as we can backorder the item from our suppliers

1 in stock

SKU: ps-g750gm Category: Semi Modular

Description

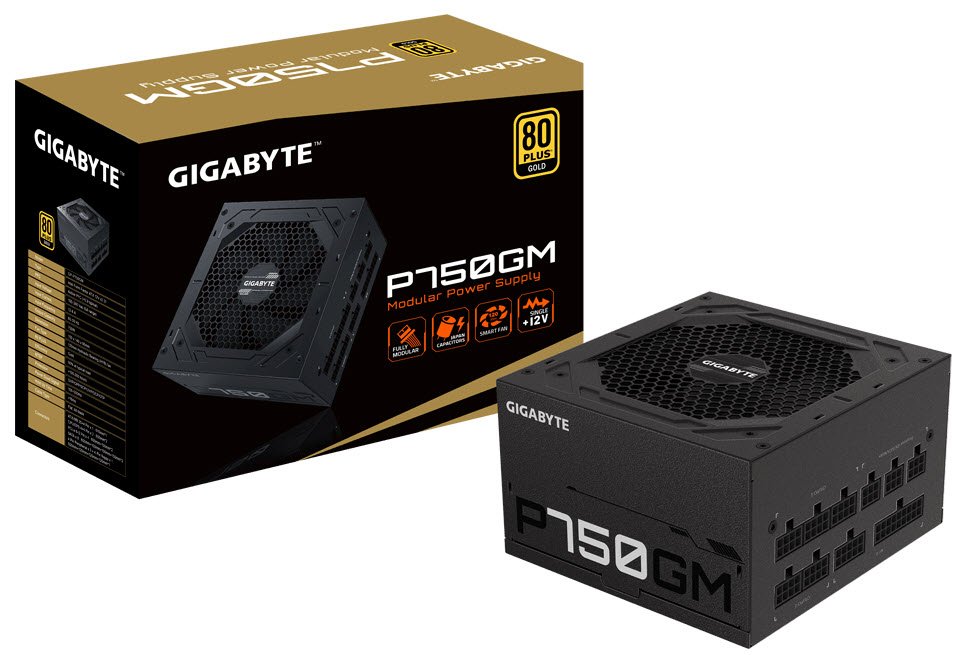

Gigabyte Gp-P750gm / Gp-Ud750gm 750w 80plus Gold Modular

80 PLUS Gold certified
Fully modular design
120mm Smart Hydraulic Bearing (HYB) Fan
Main Japanese capacitors
Powerful single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection
Compact size
5 years warranty (Adjusted according to different regions)

Specification

Model

GP-P750GM
Type

Intel Form Factor ATX 12V v2.31
PFC

Active PFC (>0.9 typical)
Input Voltage

100-240 Vac (full range)
Input Current

12-6 A
Input Frequency

60-50 Hz
Output Capacity

750W
Dimension

150 x 140 x 86 mm
Fan Type

120mm Hydraulic Bearing ( HYB ) fan
80 PLUS

Gold
Efficiency

90% at typical load
MTBF

>100,000 hours
Protection

OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal

100-500ms
Hold Up Time

>16ms
Cable Type

Flat, All black
Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2 :
4 Pin Peripheral x 3 + 4-Pin floppy x 1 :
500mm+120mm+120mm+120mm *1
