Gigabyte Aorus Gp-Ap1200pm 1200w 80plus Platinum Modular + Digital Lcd ( Customizable For Pc Health/Text/Image/Gif/Video ) + Rgb - 12x Full Modular Cable Management ( All Detachable + Flat Cable System ) Eps12v- 24pin ( 4pin Detachable ) 2x Eps12v 10x

Gigabyte Aorus Gp-Ap1200pm 1200w 80plus Platinum Modular + Digital Lcd ( Customizable For Pc Health/Text/Image/Gif/Video ) + Rgb – 12x Full Modular Cable Management ( All Detachable + Flat Cable System ) Eps12v- 24pin ( 4pin Detachable ) 2x Eps12v 10x

R7 798,70

Prices and Stock are updated on a monthly basis, if a product is out of stock… contact us as we can backorder the item from our suppliers

1 in stock

SKU: ps-g1200pm+l Category: Brand:

Description

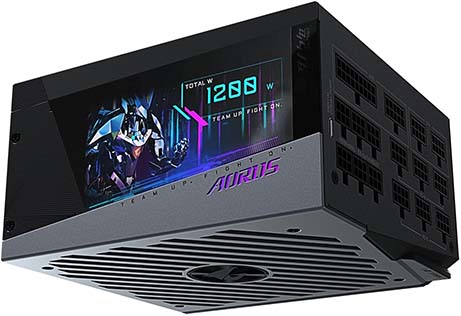

Gigabyte Aorus Gp-Ap1200pm 1200w 80plus Platinum Modular + Digital Lcd

KEY FEATURE

Digital LCD monitor
80 PLUS Platinum certified
Fully modular design
100% Japanese capacitors
Compact size design
140mm smart double ball bearing fan
Fan dust removal function
Single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection
10 years warranty (Adjusted according to different regions)

Specification

  • Model
    GP-AP1200PM
  • Type
    Intel Form Factor ATX 12V v2.31
  • PFC
    Active PFC (>0.9 typical)
  • Input Voltage
    100-240 Vac (full range)
  • Input Current
    15-7.5A
  • Input Frequency
    60-50 Hz
  • Output Capacity
    1200W
  • Dimension
    150 x 160 x 86mm
  • Fan Type
    140mm Double ball bearing Fan
  • 80 PLUS
    Platinum
  • Efficiency
    92% at typical load
  • MTBF
    >100,000 hours
  • Protection
    OVP/OPP/SCP/UVP/OCP/OTP
  • Power Good Signal
    100-150ms
  • Hold Up Time
    >16ms
  • Cable Type
    Flat, All black
  • Connectors
    ATX/MB 20+4 Pin x 1 : 610mm*1
    CPU/EPS 4+4 Pin x 2 : 650mm*2
    PCI-e 6+2 Pin x 10 : 650mm+150mm*4/650mm*2
    SATA x 16 : 650mm+150mm+150mm+150mm*4
    4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+120mm+120mm+150mm*2
