Description

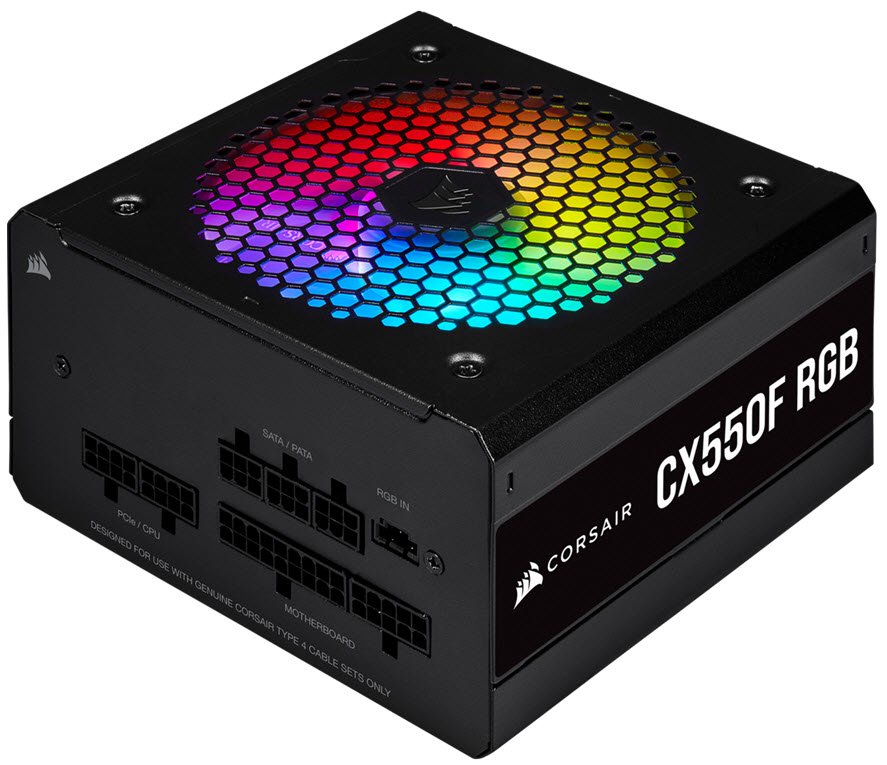

CX Series™ CX550F RGB — 550 Watt 80 Plus® Bronze Certified Fully Modular RGB PSU
CORSAIR CX-550F RGB Series fully modular power supplies deliver reliable 80 PLUS Bronze efficient power to your system, alongside vibrant customizable lighting from a 120mm RGB fan and a clean aesthetic.
Specifications
| PSU Compatibility | ATX12V v2.4 and EPS12V 2.92 standards |
|---|---|
| ATX12V Version | v2.4 |
| Cable Type | Sleeved and Flat Black Cables |
| Continuous Power W | 550 Watts |
| EPS Connector | 1 |
| Fan Bearing Technology | Rifle Bearing |
| Multi GPU Ready | Yes |
| SATA Connector | 7 |
| PATA Connector | 4 |
| Special Technology | 120mm RGB Fan | Push-button for manual RGB control | RGB-In port for software control | ARGB Compatible (with included adapter) |
| Protections | OVP (Over Voltage) | UVP (Under Voltage) | SCP (Short Circuit) | OTP (Over Temp) | OPP (Over Power) |
| Modern Standby | Yes |
| Dimensions | 150mm x 86mm x 140mm |
| Modular | Fully |
|---|---|
| Intel C6C7 Sleep State Compat | Yes |
| PCIe Connector | 2 |
| ATX Connector | 1 |
| Fan Size MM | 120mm |
| MTBF Hours | 100,000 hours |
| PSU Form Factor | ATX |
| Zero RPM Mode | No |
| Single Multiple 12V Rail Toggl | No |
| 80 PLUS Efficiency | Bronze |
| Warranty | 5 Years |
| Weight | 2.03 |
