Description

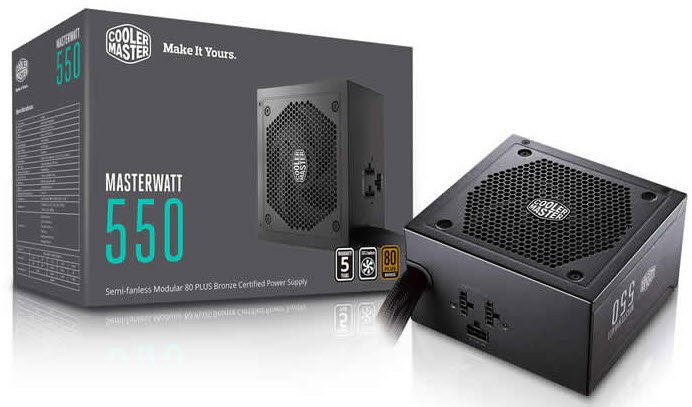

Coolermaster Mpx-5501-Amaab Masterwatt Modular 550w
• Semi-Fanless up till 15% load
• Dual Forward and DC-to-DC circuit design
• 5 years warranty
• More Conductive PCI-e Cables
• 80 PLUS Bronze Certified
• Durable LDB bearing
Specification
PFC Active PFC
Input Frequency 50-60Hz
Operation Voltage 100-240Vac
ErP 2013 Lot 6 Yes
MB 20+4 Pin Connectors 1
FDD Cable 4 Pin Connectors 1
Operating Temperature 0-40°C
Power Good Signal 100 – 500 ms
MTBF> 100,000 Hours
ATX Version ATX 12V v2.4
Modular Semi Modular
CPU 12V 4+4 Pin Connectors 1
Fan Size 120mm
Fan Bearing LDB
Category 500 to 750W
80 Plus Bronze
Series MasterWatt Series
Efficiency 85% @ Typical Load
PCI-e 6+2 Pin Connectors 2
SATA Connectors 6
Input Voltage 100-240Vac
Protections OVP
Protections OPP
Peripheral 4 Pin Connectors 2
Dimensions (L x W x H) 140 x 150 x 86 mm
Protections SCP
Protections UVP
Protections OTP
Hold Up Time 16ms at 80% Load
Protections OCP
Input Current 8-4A
Regulatory CCC
Regulatory CE
Regulatory TUV-RH
Regulatory RCM
Regulatory EAC
Regulatory cTUVus
Regulatory FCC
Model MPX-5501-AMAAB
Regulatory BSMI
Regulatory KC
Regulatory CB
Product Name MasterWatt 550
