Description
Specification

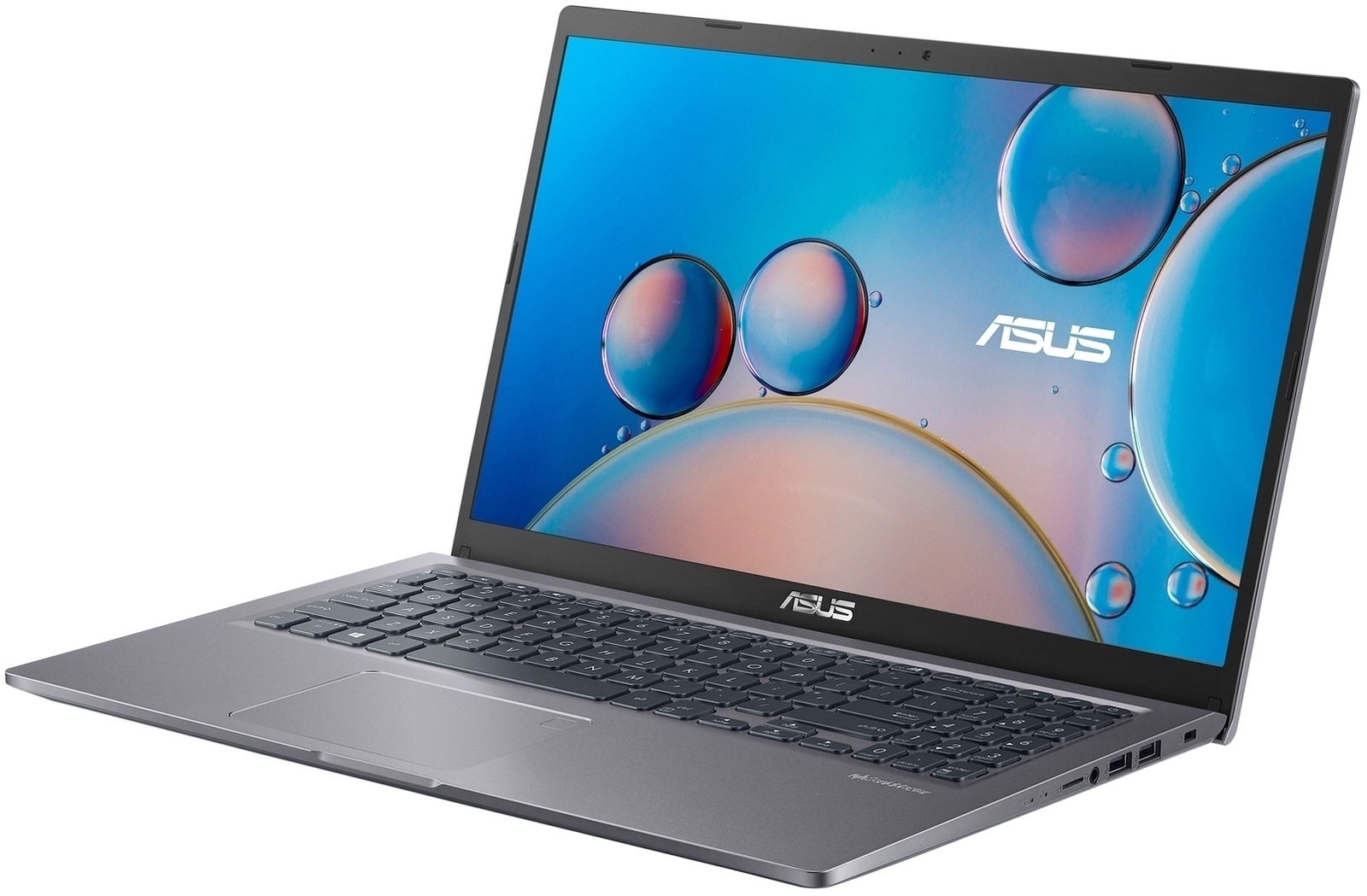

Model X515EA
Color Slate Grey
Operating System
Windows 10 Home – ASUS recommends Windows 10 Pro for business
Windows 10 Home – ASUS recommends Windows 10 Pro for business
Processor
Intel® Core™ i5-1135G7 Processor 2.4 GHz (8M Cache, up to 4.2 GHz, 4 cores)
Intel® Core™ i5-1135G7 Processor 2.4 GHz (8M Cache, up to 4.2 GHz, 4 cores)
Graphics
Intel® UHD Graphics
*Intel Iris Xᵉ Graphics is only available in models with Intel® Core™ i5/i7/i9 processors and dual-channel memory.
*Intel Iris Xᵉ Graphics is only available in models with Intel® Core™ i5/i7/i9 processors and dual-channel memory.
Display
15.6-inch, FHD (1920 x 1080) 16:9 aspect ratio, LED Backlit, 60Hz refresh rate, 200nits, 45% NTSC color gamut, Anti-glare display, Non-touch screen, (Screen-to-body ratio)83%
Memory
8GB DDR4 on board
Max Total system memory up to:16GB
Max Total system memory up to:16GB
Storage
256GB M.2 NVMe™ PCIe® 3.0 SSD
256GB M.2 NVMe™ PCIe® 3.0 SSD
Expansion Slots (includes used)
1x DDR4 SO-DIMM slot
1x M.2 2280 PCIe 3.0×4
1x STD 2.5” SATA HDD
1x M.2 2280 PCIe 3.0×4
1x STD 2.5” SATA HDD
1x DDR4 SO-DIMM slot
I/O Ports
1x USB 3.2 Gen 1 Type-A
1x USB 3.2 Gen 1 Type-C
2x USB 2.0 Type-A
1x HDMI 1.4
1x 3.5mm Combo Audio Jack
1x DC-in
1x USB 3.2 Gen 1 Type-C
2x USB 2.0 Type-A
1x HDMI 1.4
1x 3.5mm Combo Audio Jack
1x DC-in
Keyboard & Touchpad
Backlit Chiclet Keyboard with Num-key, 1.4mm Key-travel, Touchpad
Chiclet Keyboard with Num-key, 1.4mm Key-travel, Touchpad
Camera
VGA camera
Audio
Built-in speaker
Built-in microphone
with Cortana support
Built-in microphone
with Cortana support
SonicMaster
Built-in speaker
Built-in microphone
with Cortana support
Built-in speaker
Built-in microphone
with Cortana support
Network and Communication
Wi-Fi 5(802.11ac) (Dual band) 1*1 + Bluetooth® 5.1 Wireless Card (*Bluetooth® version may change with OS version different.)
Battery
37WHrs, 2S1P, 2-cell Li-ion
37WHrs, 2S1P, 2-cell Li-ion
Power Supply
ø4.0, 45W AC Adapter, Output: 19V DC, 2.37A, 45W, Input: 100~240V AC 50/60Hz universal
Weight
1.80 kg (3.97 lbs)
Dimensions (W x D x H)
36.00 x 23.50 x 1.99 ~ 1.99 cm (14.17″ x 9.25″ x 0.78″ ~ 0.78″)
Built-in Apps
MyASUS
MyASUS Features
AppDeals
System diagnosis
Battery health charging
Fan Profile
Splendid
Tru2Life
Function key lock
WiFi SmartConnect
Link to MyASUS
System diagnosis
Battery health charging
Fan Profile
Splendid
Tru2Life
Function key lock
WiFi SmartConnect
Link to MyASUS
Microsoft Office
1-month trial for new Microsoft 365 customers. Credit card required.
Ecolabels & Compliances
Energy star
Security
Trusted Platform Module (Firmware TPM)
Security Lock
McAfee®
Security Lock
McAfee®
