Description

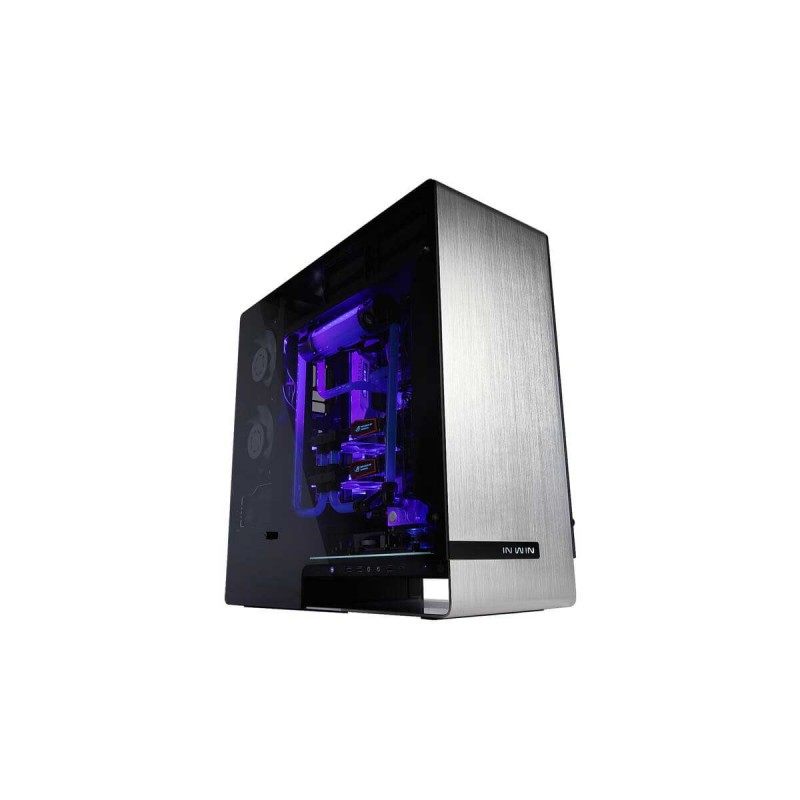

In-Win 909 Extreme Simplicity- Sense of Beauty

Impressively Detailed Craftsmanship

The In-Win 909 is constructed with solid materials, and its chamfered edge design and sleek anodized aluminium finish is beautifully crafted to masterfully create a streamlined and smooth enclosure inside and out.

Simplicity in Design

The 909 features a single piece 4mm brushed aluminium shell and an elegant back panel that hides unnecessary rear i/O cables. The clutter-free design demonstrates the elegant aesthetics of simplicity.

Tempered Glass Side Panels

The side panels are finished entirely out of 5mm tinted tempered glass which reveals the internal LED light, and overall enhances the 909 into a truly modern and dynamic appearance.

Latest USB 3.1 Gen 2 Type C

909 fully supports the motherboards with USB 3.1 Gen2 Type C solution, allowing users experience the highest data transferring speed and dual side slot increases convenience.

Magnetic Aluminium Dust Filter

The Front intake fan dust filter has an embedded magnet design for easy removal creating a convenient installation and more importantly excellent dust reduction.

Elegant Lighting Effects

A high quality chassis should look beautiful when powered on and iwth the 909 it has a white LED strip creating various lighting effects to illuminate the PC interior beautifully highlighting the interior components.

Unique HDD and PSU Chamber Design

The separate HDD and PSU chambers provide an ideal thermal environment by allowing heat airflow to dissipate directly to the back venting holes without interfering with the motherboard and graphic card area, and significantly improving the ventilation.

Specifications

Model: 909

Color: Black, Silver

Case Type: Full Tower

Case Material: Tempered Glass and Aluminum

Motherboard Compatibility: 12″x 13.4″ E-ATX, ATX, Micro-ATx, Mini-ITX

Expansion Slots: PCI-E x 8

Maximum Compatibility;

VGA Card Length – 320mm maximum,

Vga Card Height –  180mm maximum,

CPU Heatsink Height: 175mm

Front Ports:

1x USB 3.1 Gen2 Type C

2x USB 3.0

1x USB 2.0

LED Light Button

HD Audio Panel

Internal Drive Bays: 4x 2.5 / 3.5″  – 6 x 2.5″

Thermal Solution Compatibility:

2x 120 or 140mm Front Fan, 280mm Radiator

1x 120mm Middle Fan/ 120mm Radiator

3x 120mm Rear Fans / 360mm Radiator

2x 120mm or 140mm Bottom Fan / 240mm Radiator

Power Supply Compatibility:

PSII ATX 12v or EPS 12v  – Length 220mm maximum

Product Dimensions 540mm x 251mm x 575mm

Package Dimensions 370mm x 707mm x 672mm

Net Weight: 17kg

Gross Weight: 20.6 Kg
