Description

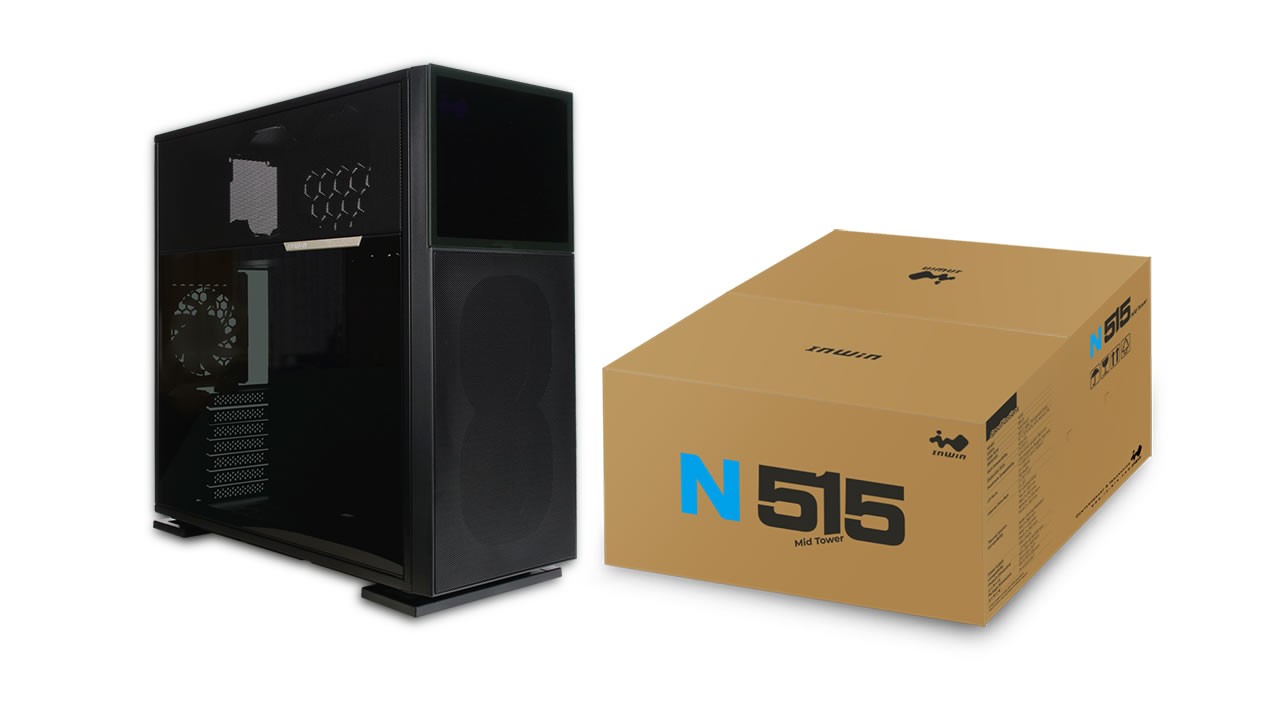

Inwin 515 Black Mid Tower Desktop Chassis with Tempered Glass Side Panel (no psu)

manufacturer page https://www.in-win.com/en/gaming-chassis/515

Specs

Model 515
Model Number IW-CS-515BLK-1AL120
Colors Black
Case Type Mid Tower
Materials SECC, ABS, Tempered Glass
M/B Compatibility 12″ x 13″ E-ATX, ATX, Micro-ATX, Mini-ITX
Expansion Slots 7 x PCI-E
Maximum Compatibility VGA Card Length: 385 mm
CPU Heatsink Height: 160 mm
I/O Ports 1 x USB 3.2 Gen 2×2 Type-C
2 x USB 3.2 Gen 1
HD Audio Combo+Mic
Internal Drive Bays 2 x 3.5″ / 2.5″
2 x 2.5″
Thermal Solution Compatibility Air Cooling Fans:
Top: 3 x 120 mm
Rear: 1 x 120 mm
Front: 2 x 120 mm
Bottom: 3 x 120 mm
(1 InWin Luna AL120 Fan Included)

Water Cooling Radiator:
Top: 1 x 360 mm (Maxi. Length 405mm & Thickness 80mm)
Rear: 1 x 120 mm
Front: 1 x 240 mm
Bottom: 1 x 360 mm (Slim) (Remove Graphic Cards Holder)
* Number of fans pre-installed may vary based on different regions
Power Supply Compatibility PSII: ATX12V
– Length up to 200 mm
Product Dimensions
(L x W x H) 515 x 225 x 502 mm
20.3 x 8.8 x 19.7″
Package Dimensions
(L x W x H) 610 x 335 x 572 mm
24 x 13.1 x 22.5″
Net Weight 11.38 kg / 25.09 lb
Gross Weight 13.46 kg / 26.67 lb
