Description

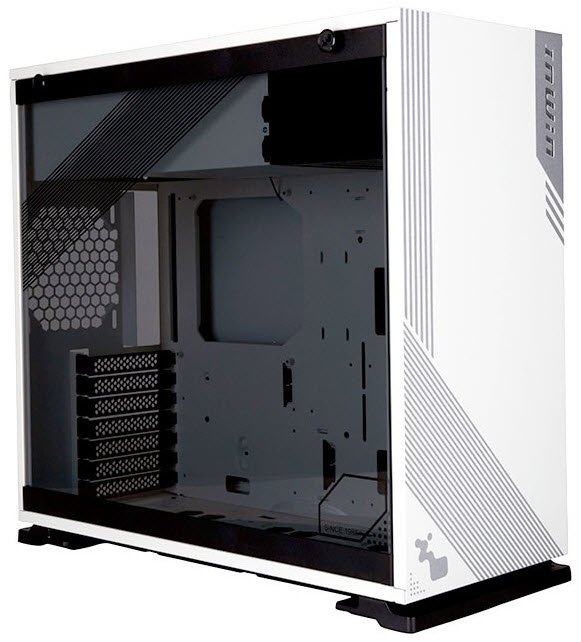

Sharp Exterior Pinstripe Design
The 103 produces gamer vibes with its pinstripe design and sharp exterior. It’s an opportunity to feel your own style and build a stunning rig.
Address Your Lighting
The InWin logo radiates with addressable RGB lighting effects. It’s controlled and synced with your motherboard software to customize your PC.
Specifications
Model 103
Part Number IW-103-Black / IW-103-White
Color Black, White
Case Type Mid Tower
Materials SECC, ABS, PC, Tempered Glass
M/B Compatibility 12″ x 10.5″ ATX, Micro-ATX, Mini-ITX
Expansion Slots PCI-E x 7
Maximum Compatibility VGA Card Length: 421mm (Maximum)
VGA Card Length: 305mm (With Side Radiator)
CPU Heatsink Height: 160mm
Front Ports 2 x USB 3.0
HD Audio
Internal Drive Bays 2 x 3.5″
2 x 2.5″ (Max. up to 4 bays)
Thermal Solution Compatibility 1 x 120mm Rear Fan / 120 mm Radiator
2 x 120mm Side Fan / 240mm Radiator
3 x 120mm Bottom Fan / 360mm Radiator
Power Supply Compatibility PSII: ATX12V
– Length up to 200mm
Product Dimensions
(H x W x D) 425 x 210 x 473 mm
16.7″ x 8.3″ x 18.6″
Product Dimensions
(H x W x D)
with screw & handle height 446 x 227 x 480 mm
17.6″ x 8.9″ x 18.9″
Package Dimensions
(H x W x D) 506 x 282 x 532mm
19.9″ x 11.1″ x 20.9″
Net Weight 7.31kg / 16.1lb
Gross Weight 8.47kg / 18.6lb
