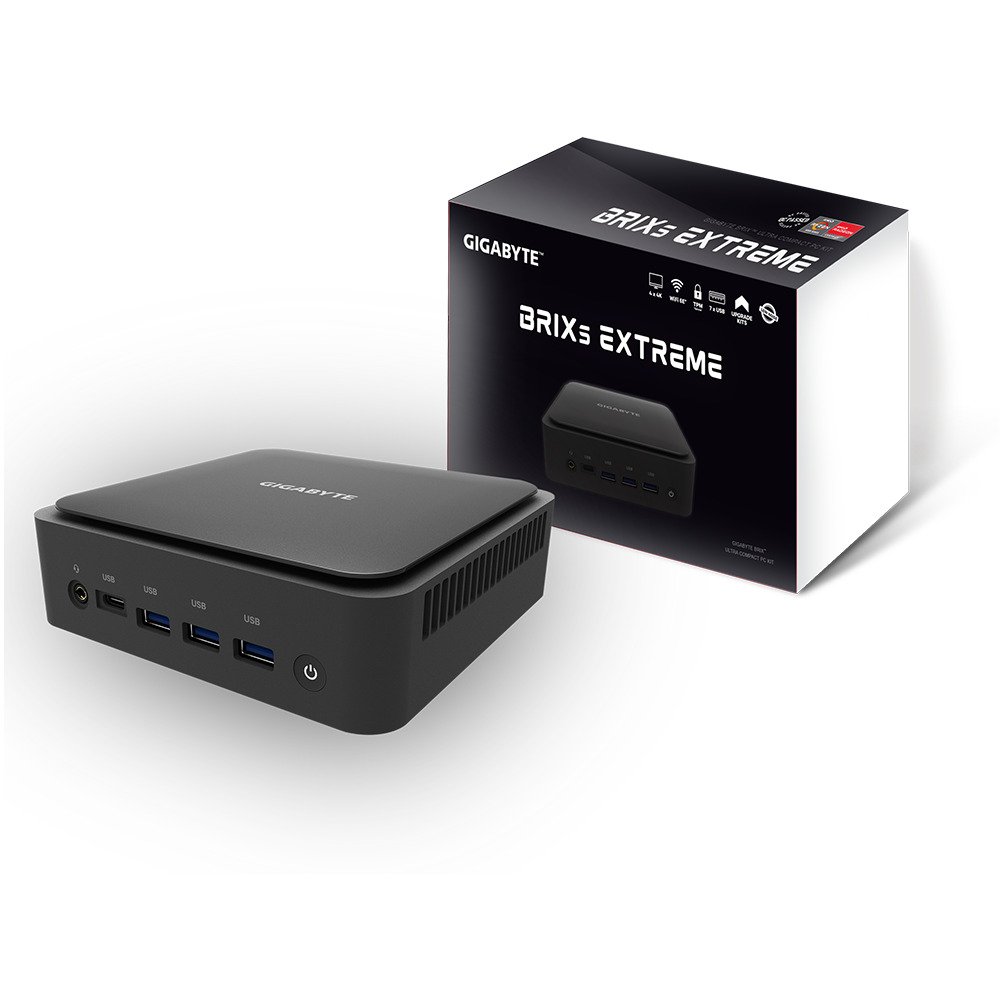

Gigabyte Ryzen Gb-Brr3h-4300 - Brixs Ultra Compact Pc - 120x120x47mm Mini Size Pc - With M.2 + 2.5" Hdd Mounting Support 4x Display Outputs + 2.5 Gigabit Lan- Amd Ryzen3 4300u - Quad Core 2.7 / 3.7ghz ( 7nm 2mb L2 Cache + 4mb L3 Cache ) Optional

Gigabyte Ryzen Gb-Brr3h-4300 – Brixs Ultra Compact Pc – 120x120x47mm Mini Size Pc – With M.2 + 2.5″ Hdd Mounting Support 4x Display Outputs + 2.5 Gigabit Lan- Amd Ryzen3 4300u – Quad Core 2.7 / 3.7ghz ( 7nm 2mb L2 Cache + 4mb L3 Cache ) Optional

R11 136,26

Prices and Stock are updated on a monthly basis, if a product is out of stock… contact us as we can backorder the item from our suppliers

Out of stock

SKU: sy-gr4300 Category: Brand:

Description

Please note: This product does not ship with a hard-drive, memory,an operating system or Tpm module, please “configure” the system using the extra options that have been made available.”

  • High Performance Ultra Compact PC (46.8 x 119.5 x 119.5 mm)
  • Ultra compact PC design in 2 size (Slim /HDD)
  • Supports 2.5″ HDD/SSD, 7.0/9.5 mm thick (1x6Gbps SATA 3)
  • 1 x M.2 SSD (2280) slot support PCI-e x4 /SATA
  • 2 x SO-DIMM DDR4 slots support 3200Mhz, Max 64GB
  • Intel WIFI6 +BT5.2
  • Realtek 2.5G LAN RTL8125
  • QUAD display : 2x Type C / HDMI / mDP with HDCP @4x4K/60P
  • RS232 COM port in HDD version
  • 5x USB 3.2 Gen1 Type A + 2x USB 3.2 Gen2 Type C (4F,3R)
  • Realtek ALC255 Codec
  • Headphone Jack
  • VESA Mounting Bracket (75 x 75mm + 100 x 100mm)
  • AC-DC adapter : 100-240V input, 19V/90W
  • OS Support : Microsoft Windows 10 64Bit
  • 1x Kensington Lock slot
  • System Environment Operating Temperature: 0°C to +35°C
  • System Storage Temperature: -20°C to +60°C
  • Option Daughter board support, 2nd COM port + LAN

Tech Specs

  • Dimension
    4‎‎6.8 mm x 119.5 mm x 119.5 mm (1.8″ x 4.7″ x 4.7″)
  • Motherboard Size
    105 x 110 mm
  • CPU
    AMD RYZEN R3-4300U, 2.0G~4.1G Turbo, 4C/4T Core, 6MB L3 Cache
    AMD Radeon GPU 1400Mhz, 15W
  • Memory
    2 x SO-DIMM DDR4 slots
    3200MHz
    Max. 64GB
  • LAN
    2.5G LAN (Realtek 8125)
  • Wifi Card
    Intel WiFi6 AX200 / BT 5.2
  • Audio
    Realtek ALC255
  • Video
    AMD Radeon™ Graphics
  • HDMI Resolution (Max.)
    HDMI2.0a ws HDCP 2.2
    3840×2160@60Hz
  • Storage
    Supports 2.5″” HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
    1 x M.2 slot (2280_storage)
    PCIe Gen3 X4 /SATA
  • Expansion Slots
    1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
  • Front I/O
    1 x Power Button
    1 x USB 3.2 type C (Gen2) w/ DP alt mode
    3 x USB type A 3.2 (Gen1)
    1 x head phone jack with MIC
  • Rear I/O
    1 x HDMI(2.0a)
    1 x mDP
    1 x USB 3.2 type C (Gen2) w/ DP alt mode
    2 x USB 3.2 type A (Gen 1)
    1 x RJ45
    1 x DC-In
  • Side I/O
    1 x Kensington lock slot
    1 x COM port
  • Power Supply
    Input: AC 100-240V
    Output: DC 19V/4.74A, 90W
  • Support OS
    Win10 64bit
  • Environment
    Operating Temperature 0°C to 35°C
    Storage Temperature -20°C to +60°C
