Description
KEY FEATURE

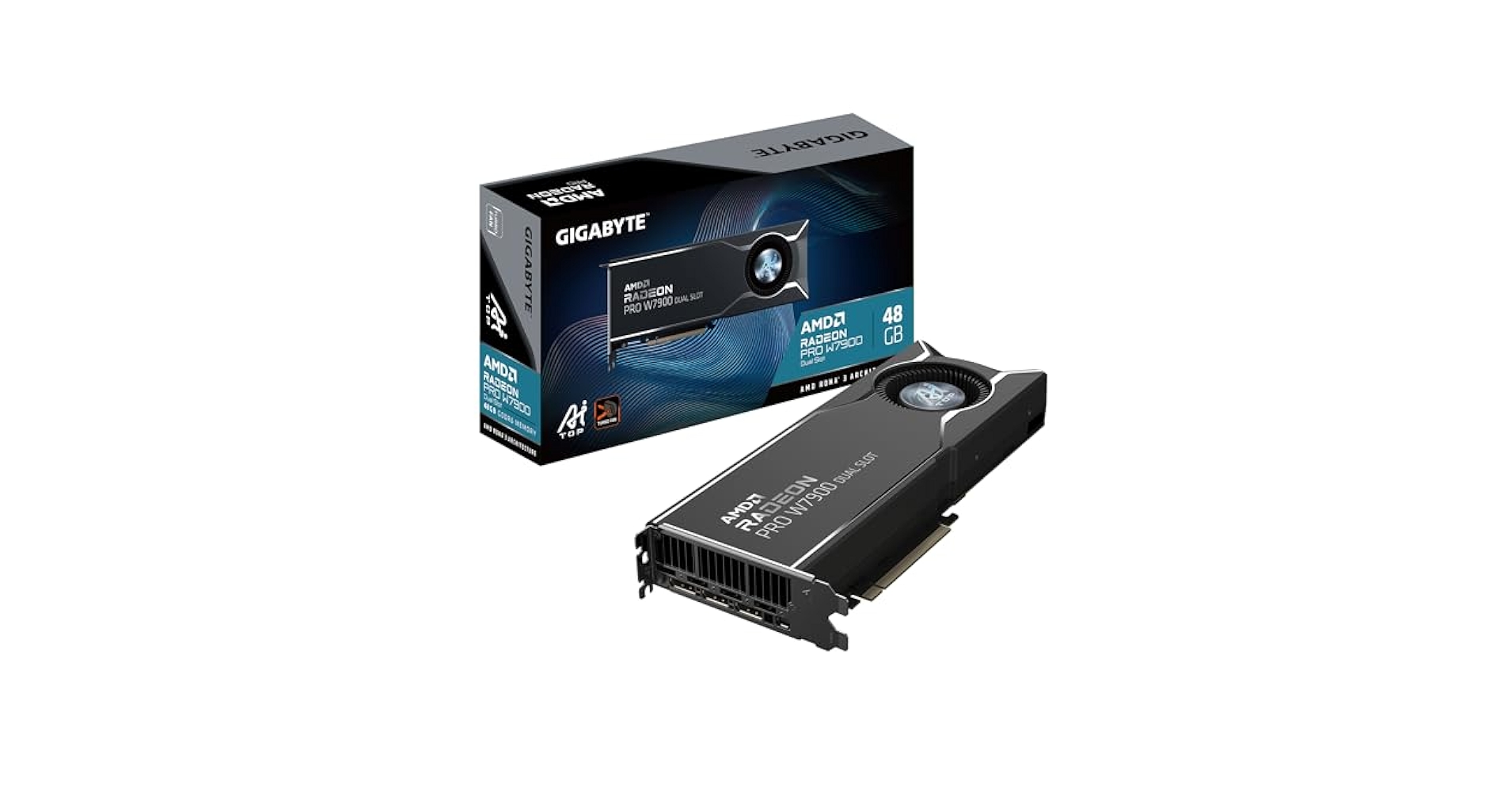

- Powered by AMD Radeon™ PRO W7900
- Integrated with 48GB GDDR6 384bit memory interface with ECC
- Designed For AI Computing
- Turbo Fan cooling system
- All copper cooling & metal frame
- Double ball bearing fan
- Protection metal back plate
Specifications
-
Graphics Processing
-
Radeon™ PRO W7900
-
Stream Processors
-
6144
-
Computing Units
-
96
-
AI Accelerators
-
192
-
Ray Accelerators
-
96
-
Peak Single Precision Matrix (FP32) Performance
-
61.3 TFLOPS
-
Peak Half Precision (FP16) Performance
-
122.64 TFLOPS
-
Memory Size
-
48 GB
-
Memory Type
-
GDDR6 with ECC
-
Memory Bus
-
384 bit
-
Memory Bandwidth (GB/sec)
-
864 GB/s
-
Card Bus
-
PCI-E 4.0 x 16
-
Digital max resolution
-
4x 4096 x 2160 (4K DCI) @ 120Hz with DSC
2x 6144 x 3456 (6K) 12-bit HDR @ 60Hz Uncompressed
1x 7680 x 4320 (8K) 12-bit HDR @ 60Hz Uncompressed
1x 12288 x 6912 (12K) @ 120Hz with DSC
-
Multi-view
-
4
-
Card size
-
L=293 W=126 H=42 mm, Dual Slot
-
Product Weight
-
1.25 kg
-
PCB Form
-
ATX
-
DirectX
-
DirectX 12 API
-
OpenGL
-
4.6
-
Max Power Consumption
-
295W Peak
-
Recommended PSU
-
750W
-
Power Connectors
-
8 Pin*2
-
Output
-
DisplayPort 2.1 x3
Mini DisplayPort 2.1 x1
-
Accessories
-
Manual
-
Supported Rendering Formats
-
1x Encode & Decode (AV1) , 2x Decode (H26/ 5HEVC，4K H264)
2x Encode (+AVI Encode and Decode)
-
Supported Technologies
-
AMD Viewport Boost , AMD Remote Workstation , AMD Radeon™ Media Engine , AMD Software PRO Edition , AMD Radeon™ VR Ready Creator , AMD Radeon™ ProRender
