Description

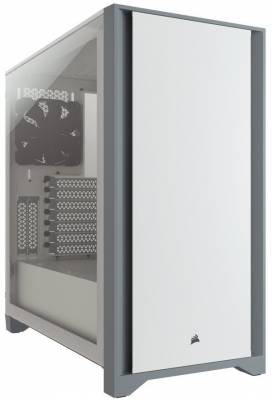

Corsair 5000D Airflow Tempered Glass Mid-Tower Atx PC Case – White
- Easily fits any Nvidia 4000 series or AMD 7000 series GPU up to 400mm
- RapidRoute cable management system
- Spacious interior fits up to 10x 120mm or 4x 140mm fans
- 25mm of cable routing depth with easy-access hinged door
GEFORCE RTX 50 SERIES READY
Let us show you the best products and explain the new requirements for the next-generation of GPUs so you can get the best out of your new system
5000D AIRFLOW MID-TOWER ATX CASE
CLEAN AND COOL
COOLING VERSATILITY
MAXIMUM COOLING POTENTIAL
A spacious interior fits up to 10x 120mm or 4x 140mm cooling fans, along with multiple radiators including up to a 360mm in front or side and a 360mm push/pull in the roof.
THERE’S NO REPLACEMENT FOR DISPLACEMENT
The 5000D AIRFLOW isn’t your run-of-the-mill, standard mid-tower ATX case. Its brilliantly engineered interior offers incredible expansion capability for liquid cooling.
Specifications
Case Supported
Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Case Height
520
Case Length
520
Case Width
245
Case Form Factor
MID TOWER
Motherboard Support
Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Color
WHITE
Case Size
Mid-Tower
Radiator Compatibility
120mm, 140mm, 240mm, 280mm, 360mm
Case Window
Tempered Glass
Case Dimensions
520mm x 245mm x 520mm
Compatible Liquid Coolers
H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i
Case Warranty
2 Year
Internal 3.5″ Drive Bays
2
Internal 2.5″ Drive Bays
4
Maximum CPU Cooler Height
170mm
Maximum PSU Length
250mm
Case Front IO
(1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
Maximum GPU Length
420mm
Weight
15.63kg
Case Expansion Slots
7 horizontal + 2 vertical
Case Power Supply
ATX
Radiator Support – Front
360mm, 280mm, 240mm
Radiator Support – Side
360mm, 280mm, 240mm
Radiator Support – Rear
120mm
Fan Support – Top
3x 120mm; 2x 140mm
Fan Support – Front
3x 120mm; 2x 140mm
Fan Support – Side
3x 120mm; 2x 140mm
Fan Support – Rear
1x 120mm
Reverse Connector Motherboard Support
No
Cable Routing Space
25mm
RapidRoute Included
Yes
Vertical Mount Support
Supported (Riser Card Sold Separately)
