- Product Collection Intel® Xeon® W Processor \n
- Code Name Products formerly Comet Lake \n
- Vertical Segment Workstation \n
- Processor Number W-1270P \n
- Lithography 14 nm \n
- Recommended Customer Price$472.00-$482.00 \n
\n
\n\n
\nCPU Specifications
\n- \n
- Total Cores 8 \n
- Total Threads 16 \n
- Max Turbo Frequency 5.10 GHz \n
- Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.10 GHz \n
- Intel® Turbo Boost Technology 2.0 Frequency‡ 5.00 GHz \n
- Processor Base Frequency 3.80 GHz \n
- Cache 16 MB Intel® Smart Cache \n
- Bus Speed 8 GT/s \n
- TDP 125 W \n
- Configurable TDP-down Base Frequency 3.50 GHz \n
- Configurable TDP-down 95 W \n
\n
\n\n
\nSupplemental Information
\n- \n
- Marketing Status Discontinued \n
- Launch Date Q2'20 \n
- Embedded Options Available No \n
- Use Conditions Workstation \n
- Included Items This product is available in tray and box. For boxed product, a thermal solution is not included \n
\n
\n\n
\nMemory Specifications
\n- \n
- Max Memory Size (dependent on memory type) 128 GB \n
- Memory Types DDR4-2933 \n
- Max # of Memory Channels 2 \n
- Max Memory Bandwidth 45.8 GB/s \n
- ECC Memory Supported ‡ Yes \n
\n
\n\n
\nGPU Specifications
\n- \n
- GPU Name‡ Intel® UHD Graphics P630 \n
- Graphics Base Frequency 350 MHz \n
- Graphics Max Dynamic Frequency 1.20 GHz \n
- Graphics Video Max Memory 64 GB \n
- 4K Support Yes, at 60Hz \n
- Max Resolution (HDMI)‡ 4096x2160@30Hz \n
- Max Resolution (DP)‡ 4096x2304@60Hz \n
- Max Resolution (eDP - Integrated Flat Panel)‡ 4096x2304@60Hz \n
- DirectX* Support 12 \n
- OpenGL* Support 4.5 \n
- Intel® Quick Sync Video Yes \n
- Intel® InTru™ 3D Technology Yes \n
- Intel® Clear Video HD Technology Yes \n
- Intel® Clear Video Technology Yes \n
- # of Displays Supported ‡ 3 \n
- Device ID 0x9BC6 \n
\n
\n\n
\nExpansion Options
\n- \n
- Scalability 1S Only \n
- PCI Express Revision 3.0 \n
- PCI Express Configurations ‡ Up to 1x16, 2x8, 1x8+2x4 \n
- Max # of PCI Express Lanes 16 \n
\n
\n\n
\nPackage Specifications
\n- \n
- Sockets Supported FCLGA1200 \n
- Max CPU Configuration 1 \n
- Thermal Solution Specification PCG 2015D \n
- TJUNCTION 100°C \n
- Package Size 37.5mm x 37.5mm \n
\n
\n\n
\nAdvanced Technologies
\n- \n
- Intel® Optane™ Memory Supported ‡ Yes \n
- Intel® Thermal Velocity Boost No \n
- Intel® Turbo Boost Max Technology 3.0 ‡ Yes \n
- Intel® Turbo Boost Technology ‡ 2.0 \n
- Intel® Hyper-Threading Technology ‡ Yes \n
- Intel® Transactional Synchronization Extensions No \n
- Intel® 64 ‡ Yes \n
- Instruction Set 64-bit \n
- Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 \n
- Idle States Yes \n
- Enhanced Intel SpeedStep® Technology Yes \n
- Thermal Monitoring Technologies Yes \n
- Intel® Identity Protection Technology ‡ Yes \n
\n
\n\n
\nSecurity & Reliability
\n- \n
- Intel vPro® Eligibility ‡ Intel vPro® Platform \n
- Intel® AES New Instructions Yes \n
- Secure Key Yes \n
- Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® ME \n
- Intel® OS Guard Yes \n
- Intel® Trusted Execution Technology ‡ Yes \n
- Execute Disable Bit ‡ Yes \n
- Intel® Boot Guard Yes \n
- Intel® Virtualization Technology (VT-x) ‡ Yes \n
- Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes \n
- Intel® VT-x with Extended Page Tables (EPT) ‡ Yes \n

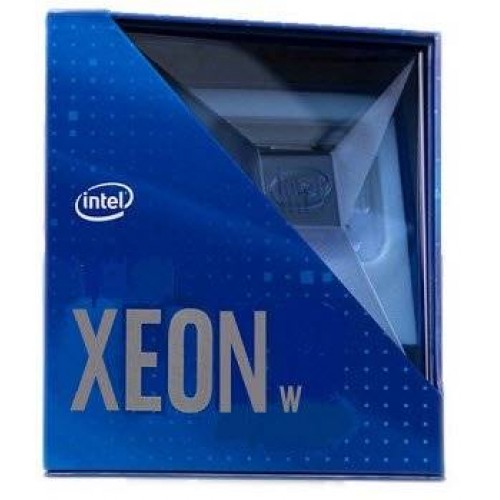

Intel Comet Lake Xeon W-1270p Lga1200 ( For W480 Chipset ) - 8 Cores+Hyper-Threading / 16 Threads 3.8ghz Box Cpu / 5.1ghz Turbo Boost 14nm Sse4 Avx2 Bmi Fma3 Sba Vpro Tsx Vt-X + Vt-D + Aes-N Built-In Dual Channel Ddr4-2933 ( Ecc Or Non-Ecc ) Memo
- Product Code: cp-ixm1270p
- Availability: 1
-
R15,098.01
- Ex Tax: R13,128.70
