Please note: This product does not ship with a hard-drive, memory,an operating system or Tpm module, please "configure" the system using the extra options that have been made available."

All new chassis design, Tall version
New AMD Ryzen 5500U mobile processors
AMD Radeon Graphic
Super Fast 2.5G LAN + Wifi 6 module
4x4K outputs, 2xHDMI, 1 mini DP and 1 USB type C DP, all support 4K@60P
Up to 7 USB 3.2 ports (up to 4 front+3 back)
Up to 3 x 2280 M.2 SSD storages
Optional Next Gen Upgrade KIT : Add Second LAN/ M.2 / RS232 COM port
TPM security chip available*
VESA mount support* Barebone products do not include the operating system. * Product may vary based on local distribution. * Wireless module inclusion may vary based on local distribution.
Tech Specs
- Dimension

  52 mm x 134.2 mm x 139.1 mm (2.0" x 5.3" x 5.4")
- Motherboard Size

  125mm x 128.8 mm (4.9' x 5.1")
- CPU

  AMD Ryzen™ 5 5500U, 4.0 / 2.1 GHz, 6C/12T Core, 11MB Cache Mobile Processor with Radeon™ Graphics , 15W, Zen 2
- Memory (Memory not included)

  2 x SO-DIMM DDR4 slots, support up to 3200MHz Max. 64GB
- LAN

  2.5G LAN (Realtek 8125)
- Wifi Card

  AMD RZ608 Wifi 6 /BT 5.2 Module
- Audio

  Realtek ALC897 HD audio
- Video

  AMD Radeon™ Graphics
- HDMI Resolution (Max.)

  2x HDMI2.0a with HDCP 2.2 Max Resolution 3840x2160@60Hz
- Mini DP Resolution (Max.)

  Mini DP /USB Type-C DP supports : DP1.4 Max Resolution 3840x2160@60Hz
- Storage (Hard Drives Not Included)

  1 x PCI-e Gen3 x 4 /SATA M.2 2280 slot 2 x PCI-e Gen3 x 1 /SATA M.2 2280 slots 1 x 2.5"HDD/SSD, 7.0mm thick (1 x 6 Gbps SATA 3)(Removing above dual M.2 kit before installation)
- Expansion Slots

  1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
- Front I/O

  1 x Power Button 1 x USB 3.2 type C (Gen2) 3 x USB 3.2 type A (Gen2) 1 x head phone jack with MIC
- Rear I/O

  2 x HDMI(2.0b) 1 x mDP 1 x USB 3.2 type C (Gen2) w/ DP alt mode 2 x USB 3.2 type A (Gen 1) 1 x RJ45 1 x DC-In 1 x Kensington lock slot
- TPM (Tpm Module not included)

  Integrate TPM module* (in selected regions /countries)
- Power Supply

  Input: AC 100-240V Output: DC 19.5V / 6.92A, 135W
- VESA

  Mounting Bracket Included
- Support OS (not included)

  Windows 11 64Bit Windows 10 64bit
- Environment

  Operating Temperature 0°C to 35°C Storage Temperature -20°C to +60°C

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

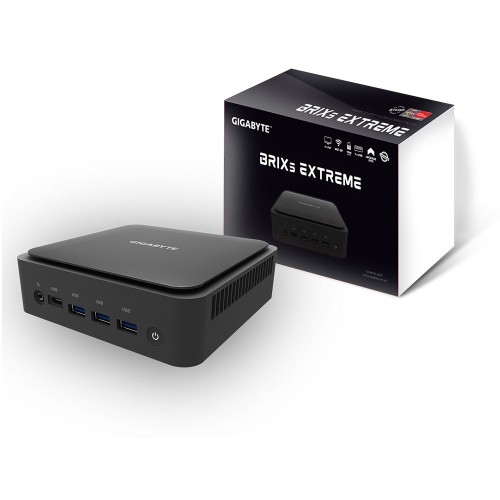

Gigabyte Ryzen Gb-Ber5hs-5500 - Brix Ultra Compact Pc - 134x139x52mm Mini Size Pc - With 3x M.2 + 2.5" Hdd Mounting Support 4x Display Outputs ( 2xhdmi+ Minidp + Dp ) + 2.5g Lan Black- Amd Ryzen5 5500u- 6 Cores+ Hyper-Threading ( 12-Threads ) 2.1

Product Code: sy-gr5500
Availability: 2-3 Days

R13,827.26
Ex Tax: R12,023.70
