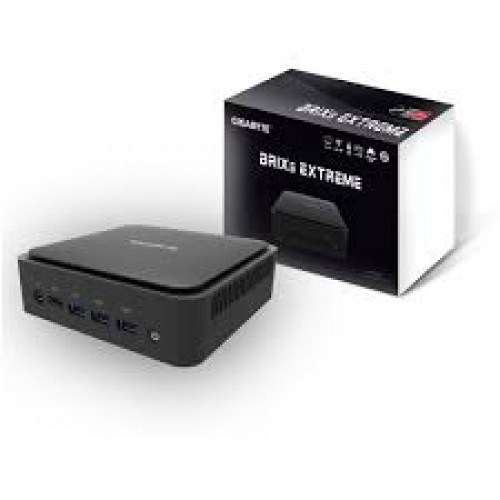

  • Gigabyte Ryzen Gb-Ber3h-5300 - Brix Ultra Compact Pc - 134x139x52mm Mini Size Pc - With 1x M.2 + 2.5" Hdd Mounting Support 4x Display Outputs ( 2xhdmi+ Minidp + Dp ) + 2.5g Lan Black- Amd Ryzen3 5300u - Quad Cores+ Hyper-Threading ( 8-Threads ) 2.
Please note: This product does not ship with a hard-drive, memory,an operating system or Tpm module, please "configure" the system using the extra options that have been made available."
  • All new chassis design, HDD version
  • New AMD Ryzen 5000U mobile processors
  • AMD Radeon Graphic
  • Super Fast 2.5G LAN + Wifi 6 module
  • 4x4K outputs, 2xHDMI, 1 mini DP and 1 USB type C DP, all support 4K@60P
  • Up to 7 USB 3.2 ports (up to 4 front+3 back)
  • 1 x 2280 M.2 SSD storage
  • TPM security chip available*
  • VESA mount support * Barebone products do not include the operating system. * Product may vary based on local distribution. * Wireless module inclusion may vary based on local distribution.

Tech Specs

  • Dimension
    52 mm x 134.2 mm x 139.1 mm (2.0" x 5.3" x 5.4")
  • Motherboard Size
    125 mm x 128.8 mm (4.9'' x 5.1")
  • CPU
    AMD Ryzen™ 3 5300U, 3.8 / 2.6 GHz, 4C/8T Core, 6MB Cache Mobile Processor with Radeon™ Graphics , 15W, Zen 2
  • Memory (Memory not included)
    2 x SO-DIMM DDR4 slots, support up to 3200MHz Max. 64GB
  • LAN
    2.5G LAN (Realtek 8125)
  • Wifi Card
    AMD RZ608 Wifi 6 /BT 5.2 Module
  • Video
    AMD Radeon™ Graphics
  • HDMI Resolution (Max.)
    2x HDMI2.0a with HDCP 2.2 Max Resolution 3840x2160@60Hz
  • Mini DP Resolution (Max.)
    Mini DP /USB Type-C DP supports : DP1.4 Max Resolution 3840x2160@60Hz
  • Storage (No Hard Drives included)
    1 x PCI-e Gen3 x 4 /SATA M.2 2280 slot 1 x 2.5" HDD/SSD, 7.0mm thick (1 x 6 Gbps SATA 3)
  • Expansion Slots
    1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
  • Front I/O
    1 x Power Button 1 x USB 3.2 type C (Gen2) 3 x USB 3.2 type A (Gen2) 1 x head phone jack with MIC
  • Rear I/O
    2 x HDMI(2.0b) 1 x mDP 1 x USB 3.2 type C (Gen2) w/ DP alt mode 2 x USB 3.2 type A (Gen 1) 1 x RJ45 1 x DC-In 1 x Kensington lock slot
  • TPM (Tpm Module not included)
    Integrate TPM module* (in selected regions /countries)
  • Power Supply
    Input: AC 100-240V Output: DC 19.5V / 6.92A, 135W
  • VESA
    Mounting Bracket Included
  • Support OS
    Windows 11 64Bit Windows 10 64bit
  • Environment
    Operating Temperature 0°C to 35°C Storage Temperature -20°C to +60°C
