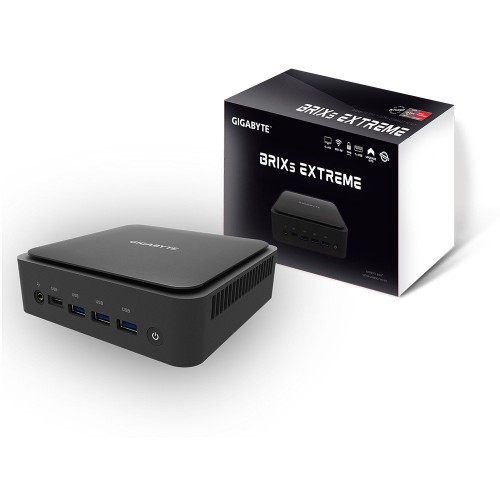

  • Gigabyte Ryzen Gb-Brr5h-4500 - Brixs Ultra Compact Pc - 120x120x47mm Mini Size Pc - With M.2 + 2.5" Hdd Mounting Support 4x Display Outputs + 2.5 Gigabit Lan- Amd Ryzen 5 4500u - 6 Cores 2.3ghz Upto 4ghz Max-Boost ( 3mb L2 + 8mb L3 Cache ) Optiona
Please note: This product does not ship with a hard-drive, memory,an operating system or Tpm module, please "configure" the system using the extra options that have been made available."
  • High Performance Ultra Compact PC (46.8 x 119.5 x 119.5 mm)
  • Ultra compact PC design in 2 size (Slim /HDD)
  • Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1x6Gbps SATA 3)
  • 1 x M.2 SSD (2280) slot support PCI-e x4 /SATA
  • 2 x SO-DIMM DDR4 slots support 3200Mhz, Max 64GB
  • Intel WIFI6 +BT5.2
  • Realtek 2.5G LAN RTL8125
  • QUAD display : 2x Type C / HDMI / mDP with HDCP @4x4K/60P
  • RS232 COM port in HDD version
  • 5x USB 3.2 Gen1 Type A + 2x USB 3.2 Gen2 Type C (4F,3R)
  • Realtek ALC255 Codec
  • Headphone Jack
  • VESA Mounting Bracket (75 x 75mm + 100 x 100mm)
  • AC-DC adapter : 100-240V input, 19V/90W
  • OS Support : Microsoft Windows 10 64Bit
  • 1x Kensington Lock slot
  • System Environment Operating Temperature: 0°C to +35°C
  • System Storage Temperature: -20°C to +60°C
  • Option Daughter board support, 2nd COM port + LAN

Tech Specs

  • Dimension
    4‎‎6.8 mm x 119.5 mm x 119.5 mm (1.8" x 4.7" x 4.7")
  • Motherboard Size
    105 x 110 mm
  • CPU
    AMD RYZEN R5-4500U, 2.3G~4.0G Turbo, 6C/6T Core, 11MB L3 Cache AMD Radeon GPU 1500Mhz, 15W
  • Memory
    2 x SO-DIMM DDR4 slots 3200MHz Max. 64GB
  • LAN
    2.5G LAN (Realtek 8125)
  • Wifi Card
    Intel WiFi6 AX200 / BT 5.2
  • Audio
    Realtek ALC255
  • Video
    AMD Radeon™ Graphics
  • HDMI Resolution (Max.)
    HDMI2.0a ws HDCP 2.2 3840x2160@60Hz
  • Storage
    Supports 2.5"" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3) 1 x M.2 slot (2280_storage) PCIe Gen3 X4 /SATA
  • Expansion Slots
    1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
  • Front I/O
    1 x Power Button 1 x USB 3.2 type C (Gen2) w/ DP alt mode 3 x USB type A 3.2 (Gen1) 1 x head phone jack with MIC
  • Rear I/O
    1 x HDMI(2.0a) 1 x mDP 1 x USB 3.2 type C (Gen2) w/ DP alt mode 2 x USB 3.2 type A (Gen 1) 1 x RJ45 1 x DC-In
  • Side I/O
    1 x Kensington lock slot 1 x COM port
  • Power Supply
    Input: AC 100-240V Output: DC 19V/4.74A, 90W
  • Support OS
    Win10 64bit
  • Environment
    Operating Temperature 0°C to 35°C Storage Temperature -20°C to +60°C
