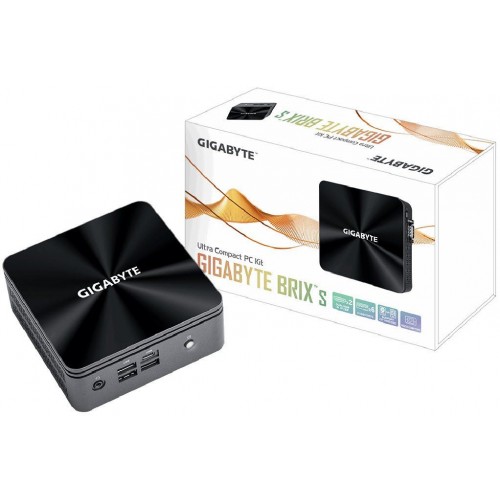

  • Gigabyte I7 Gb-Bri7h-10710 High ( With Type2280 M.2 + 2.5" Hdd Mounting Support ) - Brix Ultra Compact Pc - 120x120x47mm Mini Size Pc - 4k Hdmi Black- Intel Comet Lake Core I7-10710u - 6 Cores+ Hyper-Threading ( 12-Threads ) 1.1/4.7ghz ( With Vt-X
Please note: This product does not ship with a hard-drive, memory,an operating system or Tpm module, please "configure" the system using the extra options that have been made available."
  • High Performance Ultra Compact PC (46.8 x 119.5 x 119.5 mm)
  • Features Intel® Core™ i7-10710U Processors
  • Dual SO-DIMM DDR4 supports up to 2666MHz, 64GB
  • Support 1x M.2 SSD (2280) and 2.5" SATA HDD/SSD
  • Dual HDMI™ supports resolutions up to 4K/60P
  • Intel® Wireless-AC 3168, dual band WiFi & Bluetooth 4.2
  • Massive I/O ports, included 6 USB 3.2 Gen2, Gigabit LAN, RS232 Com Port
  • Supports Add-On Cards upgrade kit for 2nd LAN and 2nd RS 232 COM port
  • VESA Mount bracket (75 x75 mm, 100 x 100 mm)

Tech Specs

  • Dimension
    46.8 mm x 119.5 mm x 119.5 mm (1.8" x 4.7" x 4.7")
  • Motherboard Size
    105mm x 112.4mm
  • CPU
    10th Generation Intel® Core™ i7 Processor i7-10710U 4.7GHz, 6 core (TDP 15W)
  • Memory
    2 x SO-DIMM DDR4 slot 2666MHz Max. 64GB
  • LAN
    Gigabit LAN (Intel i219v)
  • Wifi Card
    Intel® Dual Band Wireless-AC 3168
  • Graphics
    Intel® UHD Graphics 620
  • Audio
    Realtek ALC255
  • HDMI Resolution (Max.)
    HDMI 2.0 : 4K (3840×2160) @ 60 Hz
  • Storage
    Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3) 1 x M.2 SSD (2280) slot support PCI-e x4 /SATA
  • Expansion Slots
    1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
  • Front I/O
    3 x USB 3.2 Gen 2 1 x USB 3.2 Gen 2 Type C 1 x Headphone / Mic Jack 1 x Power Button
  • Rear I/O
    2 x HDMI 2.0 2 x USB 3.2 Gen 2 1 x RJ45 1 x DC-In
  • Side I/O
    1 x Kensington lock slot 1 x RS232 COM Port
  • Power Supply
    Input: AC 100-240V Output: DC 19.5V 6.92A
  • VESA
    Bracket included Supports 75 x 75 and 100 x 100 mm
  • Support OS
    Windows 10
  • Environment
    System Environment Operating Temperature: 0°C to +35°C System Storage Temperature: -20°C to +60°C
