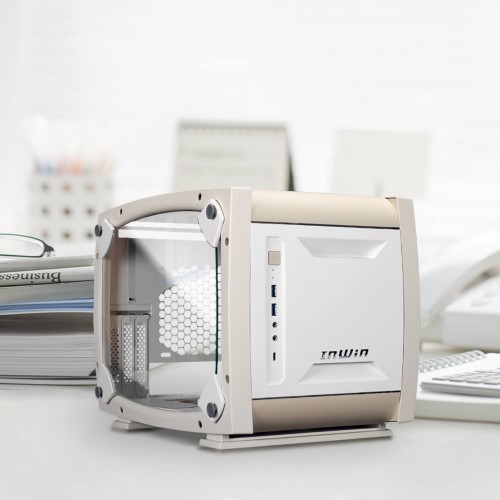

PC Build from the Outside In

The EXPLORER gaming chassis offers you the chance to build your own PC case! Assemble the modular 10 pieces of EXPLORER to complete the mini tower. Nice DIY project for yourself or build the chassis with friends or family!

Specification

Model EXPLORER

Model Number IW-CS- EXPLORER-JWHI, IW-CS- EXPLORER-BWHI

Colors Justice White, Bone White

Case Type Mini-ITX Tower

Materials Tempered Glass, SECC, ABS

M/B Compatibility Mini-ITX

Expansion slots 3 x Vertical PCI-E

Maximum Compatibility VGA Card Length: 330 mm

CPU Heatsink Height: 160 mm

I/O Ports 1 x USB 3.2 Gen 2x2 Type-C

2 x USB 3.0

HD Audio

Internal Drive Bays 2 x 2.5"

1 x 3.5"

Thermal Solution Compatibility Air Cooling Fans:

Top: 2 x 120 / 2 x 140 mm

Rear: 1 x 120 / 140 mm

(3 InWin AL120 Fans Included)

Water Cooling Radiator:

Top: 1 x 240 mm

* Number of fans pre-installed may vary based on different regions.

Power Supply Compatibility PSII : ATX12V

- Length up to 160mm

Product Dimensions

(H x W x D) 392 x 285 x 307 mm

15.4 x 11.2 x 12"

Package Dimensions

(H x W x D) 405 x 300 x 225 mm

15.9 x 11.8 x 8.8"

Net Weight 3.75 kg / 8.26 lbs

Gross Weight 5 kg / 11 lbs
