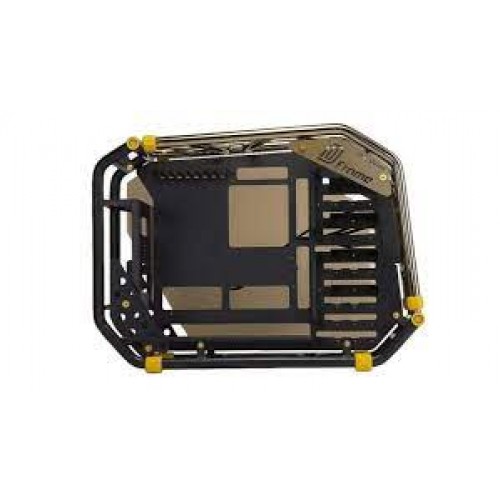

Inwin Ca03 D-Frame 2.0 Open Air Chassis Limited Edition with 1065w Power Supply

Specification

Model D-Frame 2.0

Color Black/Gold Platinum, White/Blue,  Black/Green

Case Type Open-Air Chassis

Case Material Reinforced Steel Tube, Aluminium, Tempered Glass

M/B Compatibility 12" x 13" E-ATX, ATX, Micro-ATX

Expansion Slots 8 x PCI-E Slots

Maximum Compatibility VGA Card Length: 350-415mm (Depends on Mounting Configuration)

VGA Card Height: 173mm (Motherboard Die Surface to Side Panel)

CPU Heatsink Height: 165mm (CPU Die Surface to Side Panel)

Front Ports 1 x USB 3.1 Type-C

3 x USB 3.0

HD Audio

Internal Drive Bays 4 x 2.5“/3.5” Multifunctional Brackets

Thermal Solution Compatibility 2 x 120mm Fan Brackets (Supports 2 x 120mm Fans)

1 x 3-in-1 Fan Bracket (Supports 3 x 120mm Fans)

Supports 1 x 360mm Radiator

- Front: 90mm Maximum Height including Fans

- Bottom: 65mm Maximum Height including Fans

Power Supply Compatibility SIII-1065W Internal PSU Included

ATX12V and EPS12V

- Dimension(L x W x H): 210 x 180 x 96 mm

Product Dimension

(H x W x D) 548 x 264 x 726 mm

21.6” x 10.4” x 28.6”

Product Dimension

(H x W x D)

with screw height

548 x 291 x 726 mm

21.6" x 11.5" x 28.6"

Package Dimension

(H x W x D) 760 x 346 x 842 mm

29.9" x 13.6" x 33.1"

Net Weight 22.5kg/49.5lbs

Gross Weight 25.5kg/56.1lbs
