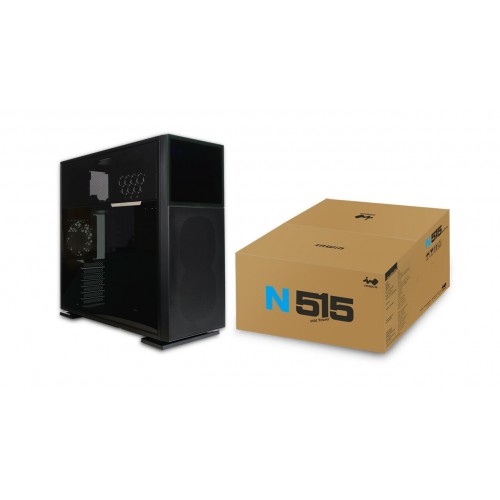

Inwin 515 Black Mid Tower Desktop Chassis with Tempered Glass Side Panel (no psu)

Specs

Colors Black

Case Type Mid Tower

Materials SECC, ABS, Tempered Glass

M/B Compatibility 12" x 13" E-ATX, ATX, Micro-ATX, Mini-ITX Expansion Slots 7 x PCI-E

Maximum Compatibility

VGA Card Length: 385 mm

CPU Heatsink Height: 160 mm

I/O Ports 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 1 HD Audio Combo+Mic

Internal Drive Bays 2 x 3.5" / 2.5" 2 x 2.5"

Thermal Solution Compatibility Air Cooling Fans:

Top: 3 x 120 mm Rear: 1 x 120 mm

Front: 2 x 120 mm

Bottom: 3 x 120 mm (1 InWin Luna AL120 Fan Included)

Water Cooling Radiator:

Top: 1 x 360 mm (Maxi. Length 405mm & Thickness 80mm)

Rear: 1 x 120 mm Front: 1 x 240 mm

Bottom: 1 x 360 mm (Slim) (Remove Graphic Cards Holder) * Number of fans pre-installed may vary based on different regions

Power Supply Compatibility PSII: ATX12V - Length up to 200 mm

Product Dimensions

(L x W x H) 515 x 225 x 502 mm 20.3 x 8.8 x 19.7"

Package Dimensions

(L x W x H) 610 x 335 x 572 mm 24 x 13.1 x 22.5"

Net Weight 11.38 kg / 25.09 lb

Gross Weight 13.46 kg / 26.67 lb
