Description

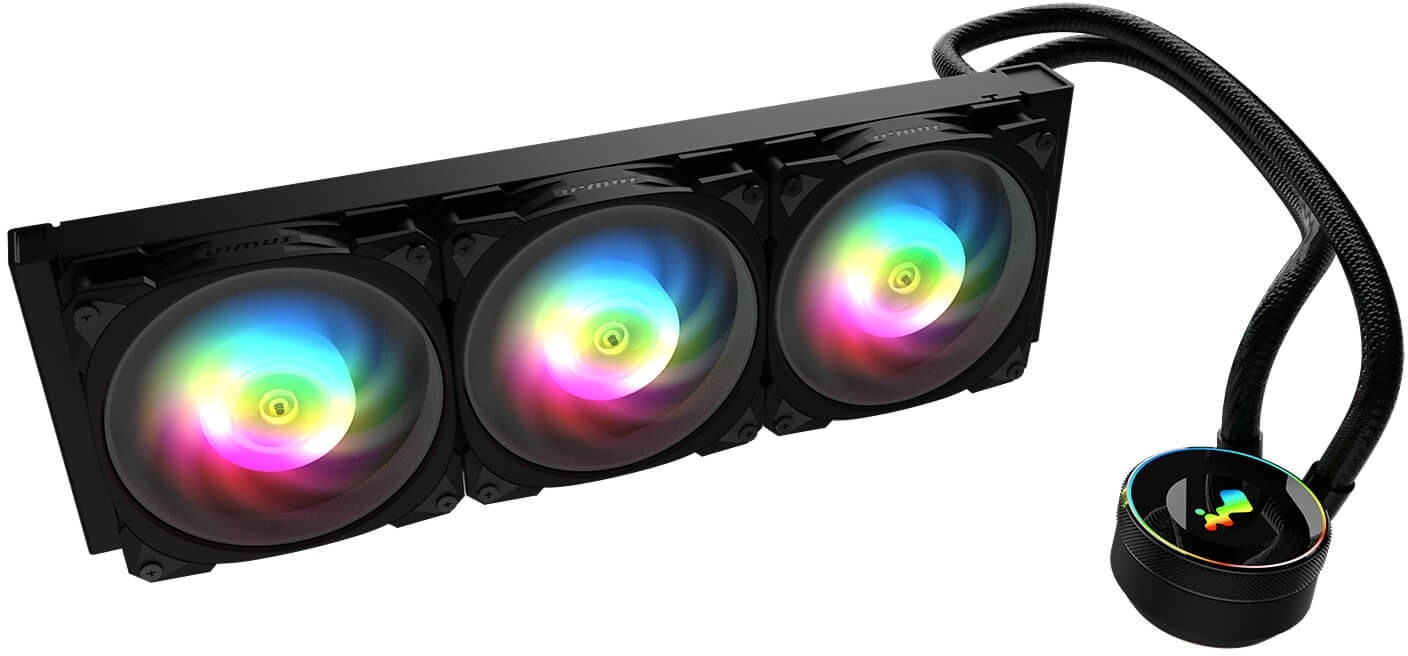

In-win MR36 cpu water cooling
Product Page https://www.in-win.com/en/cooling/mr_series
Specifications
Specifications
| Model | MR24 | MR36 | ||
|---|---|---|---|---|
| Model Number | IW-LC-MR24 | IW-LC-MR36 | ||
| CPU Socket Support | Intel® LGA 1700/ 1200/ 20xx/ 1151/ 115x AMD AM5/ AM4/ AMx/ FMx |
|||
| Radiator | Dimensions (L x W x H) |
277 x 120 x 27 mm 10.9 x 4.7 x 1.1″ |
397 x 120 x 27 mm 15.6 x 4.7 x 1.1″ |
|
| Material | Aluminium | |||
| Tube Length | 400 mm | 450 mm | ||
| Tube Material | Rubber with Nylon Braided Sleeve | |||
| Water Block | Dimensions (L x W x H) |
81 x 68 x 39 mm 4.7 x 4.7 x 1.0″ |
||
| Materials | Aluminium, Copper, Plastic | |||
| Pump | Pump Speed | 4200 RPM +/- 10% | ||
| Power | DC 12V, 0.34A (0.45A MAX) | |||
| Fan | Model | Neptune AN120 | ||
| Quantity Included | 2 PCS | 3 PCS | ||
| Dimensions (L x W x H) |
120 x 120 x 25 mm 4.7 x 4.7 x 1.0″ |
|||
| Speed Mode | PWM 900 – 2200 +/- 10% RPM | |||
| Noise Level | 20.5 dB(A) (Normal) | |||
| Airflow | 23.87 – 60.1 CFM | |||
| Air Pressure | 0.36 – 2.27 mm / H2O | |||
| Connectors | 4-Pin (12V, PWM), 3-Pin (5V, ARGB) | |||
| Bearing Type | Long Lifespan Sleeve Bearing | |||
| Package Dimension (L x W x H) |
322 x 137 x 205 mm 12.6 x 5.3 x 8″ |
448 x 137 x 205 mm 17.6 x 5.3 x 8″ |
||
| Net Weight | 1.4 Kg / 3.08 lbs | 1.7 Kg / 3.7 lbs | ||
| Gross Weight | 1.9 Kg / 4.1 lbs | 2.4 Kg / 5.2 lbs | ||
| Warranty | 3 Years | |||
| * InWin’s products comply with RoHS regulation. * Specifications may vary based on different regions. |
||||
